DANSAR(Step bending)

Makes same difference in level as the spacer by inserting spacer between body and blade

DANSAR

dimensions

Details of Setting

DANSAR-S	punch, die, blade 415 solid body	¥78,600	deails DANSAR-S, DANSAR-SUS-S Length Example When there is no obstacles on the bending side. ✕
DANSAR-L	punch, die, blade 835 solid body	¥131,000	details DANSAR-L, DANSAR-SUS-L Length Example When there is no obstacles on the bending side. ✕
DANSAR-LL	punch, die, blade 1250 solid body	¥209,700	details DANSAR-LL Length Example When there is no obstacles on the bending side. ✕

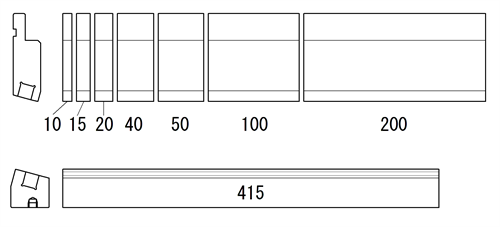

DANSAR-7	punch 435/7 sectionalized, die 415 solid body(body, blade)	¥169,700	details DANSAR-7, DANSAR-SUS-7 Length Example When making both ends stand up. ✕
DANSAR-7a	punch 435/7 sectionalized, die 415 solid body, blade 435/7 sectionalized	¥193,800	details DANSAR-7a, DANSAR-SUS-7a Length Example When making both ends stand up. ✕
DANSAR-77	punch 435/7 sectionalized, die 435/7 sectionalized(body, blade)	¥248,800	details DANSAR-77, DANSAR-SUS-77 Length Example When circumventing obstacles. ✕
DANSAR-8	punch 835/8 sectionalized, die 835 solid body(body, blade)	¥248,800	details DANSAR-8, DANSAR-SUS-8 Length Example When making both ends stand up. ✕
DANSAR-8a	punch 835/8 sectionalized, die 835 solid body, blade 835/8 sectionalized	¥212,200	details DANSAR-8a, DANSAR-SUS-8a Length Example When making both ends stand up. ✕
DANSAR-88	punch 835/8 sectionalized, die 835/8 sectionalized(body, blade)	¥303,000	details DANSAR-88, DANSAR-SUS-88 Length Example When circumventing obstacles. ✕

L=Min 10mm

Required Horsepower
(by the ton SPC per 1m)
		Step Height H
		t×1	t×2	t×3	t×4
t	0.6	8	10	15	18
	0.8	13	17	20	23
	1.0	18	22	27	30
	1.2	25	30	35	38
	1.6	43	47	53	58
	2.0	64	68	77	-
	2.3	84	90	-	-

Details of Setting for SUS

DANSAR-SUS-S	punch, die, blade 415 solid body	¥78,600	deails DANSAR-S, DANSAR-SUS-S Length Example When there is no obstacles on the bending side. ✕
DANSAR-SUS-L	punch, die, blade 835 solid body	¥131,000	details DANSAR-L, DANSAR-SUS-L Length Example When there is no obstacles on the bending side. ✕
DANSAR-SUS-7	punch 435/7 sectionalized, die 415 solid body(body, blade)	¥169,700	details DANSAR-7, DANSAR-SUS-7 Length Example When making both ends stand up. ✕
DANSAR-SUS-7a	punch 435/7 sectionalized, die 415 solid body, blade 435/7 sectionalized	¥193,800	details DANSAR-7a, DANSAR-SUS-7a Length Example When making both ends stand up. ✕
DANSAR-SUS-77	punch 435/7 sectionalized, die 435/7 sectionalized(body, blade)	¥248,800	details DANSAR-77, DANSAR-SUS-77 Length Example When circumventing obstacles. ✕
DANSAR-SUS-8	punch 835/8 sectionalized, die 835 solid body(body, blade)	¥248,800	details DANSAR-8, DANSAR-SUS-8 Length Example When making both ends stand up. ✕
DANSAR-SUS-8a	punch 835/8 sectionalized, die 835 solid body, blade 835/8 sectionalized	¥212,200	details DANSAR-8a, DANSAR-SUS-8a Length Example When making both ends stand up. ✕
DANSAR-SUS-88	punch 835/8 sectionalized, die 835/8 sectionalized(body, blade)	¥303,000	details DANSAR-88, DANSAR-SUS-88 Length Example When circumventing obstacles. ✕

*no LL for SUS.

L=Min 10mm

Required Horsepower
(by the ton SUS304 per 1m)
		Step Height H
		t×1	t×1.5	t×2	t×2.5
t	0.6	16	18	20	25
	0.8	26	30	34	-
	1.0	36	40	-	-
	1.2	50	-	-	-
